Magandang mekanikal at pagganap ng temperatura
Ang maluwag na tubo ng tubo mismo ay may mahusay na paglaban sa hydrolysis at mataas na lakas
Magandang paglaban sa compression at lambot
Miyembro ng Lakas ng Glass Yarn Tiyakin ang lakas ng makunat
Maliit na diameter, light weight at friendly na pag -install
Sumunod sa Standard YD/T 1770, ICEA-596, Gr.409, IEC 60794, IEC 332-1or IEC 332-3C.

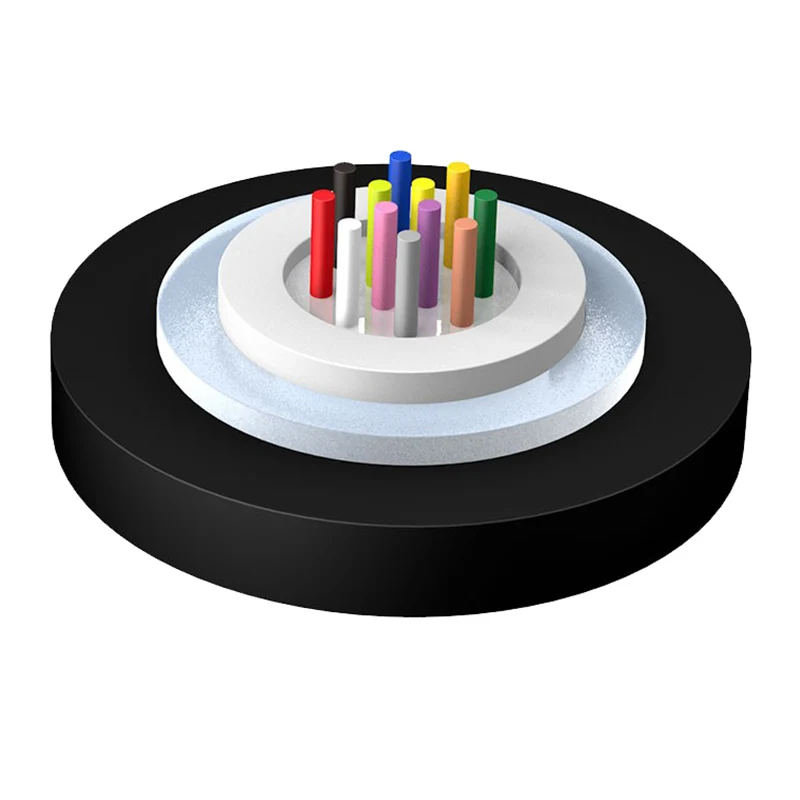

1.fibre
2.Tube pagpuno ng compound
3.Loose tube
4.Glass sinulid
5.lszh jacket
|
Modelo ng cable |
Bilang ng hibla |
Timbang ng Cable (Ref) (kg/km) |
Lakas ng makunat Mahaba/maikling termino (N) |
Paglaban ng crush Mahaba/maikling termino (N/100mm) |
Baluktot na radius Dynamic/Static (mm) |
|
ABC-i-zk-2 ~ 12xn |
2 ~ 12 |
55.5 |
200/660 |
300/1000 |
10d/20d |
|
ABC-I-ZK-14 ~ 24Xn |
14 ~ 24 |
67 |
200/660 |
300/1000 |
10d/20d |
|
Uri ng hibla |
Pagpapalambing |
Ofl |
Epektibong mode bandwidth |
10 GBIT/S Ethernet Link haba |
Minimum na radius ng liko |
|||
|
Kundisyon |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
/ |
||
|
Karaniwang halaga |
Pinakamataas na halaga |
Karaniwang halaga |
Pinakamataas na halaga |
|||||
|
Unit |
DB/km |
DB/km |
DB/km |
DB/km |
MHz.km |
MHz.km |
m |
mm |
|
G652D |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
16 |
|
G657A1 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657A2 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
50/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥500/500 |
--- |
--- |
30 |
|
62.5/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥200/500 |
--- |
--- |
30 |
|
OM3 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≤300 |
30 |
|
OM4 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≤550 |
30 |
Transportasyon/ imbakan/ temperatura ng operating: -20 ℃ -+60 ℃, temperatura ng pag -install: -5 ℃ -+50 ℃
